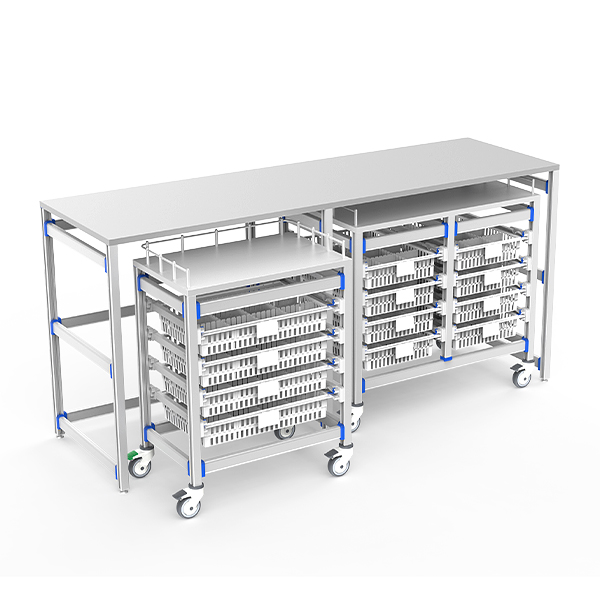

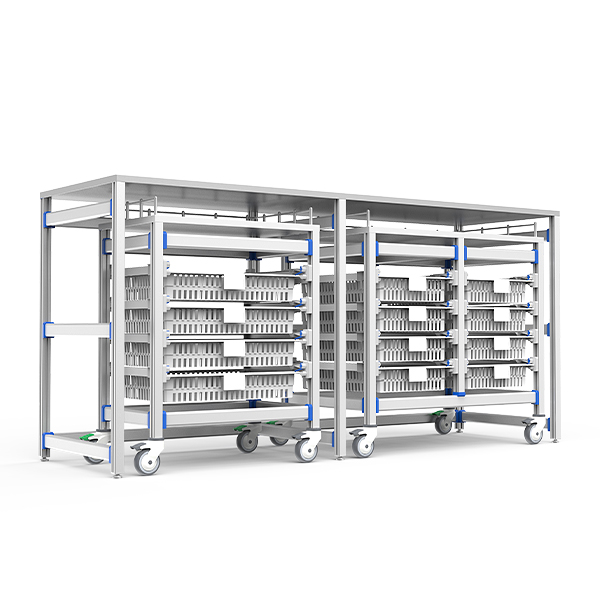

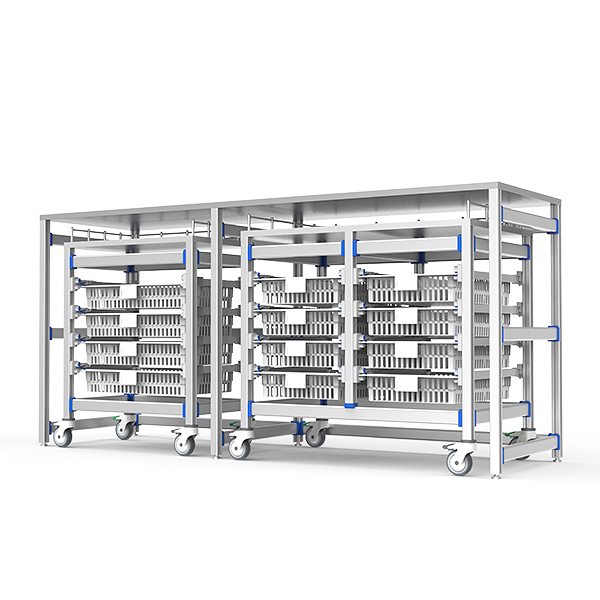

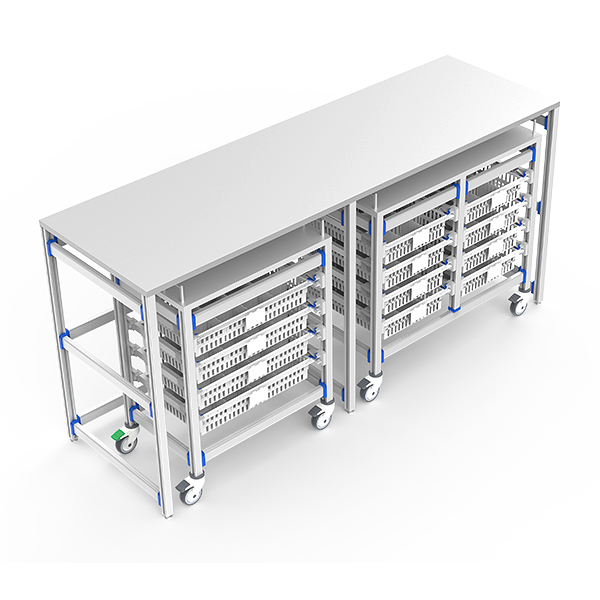

FG-PW-60/40/4F/02 Modular Supply Cart Workstation

Core Advantages:
Lightweight anodized aluminum frame with seamless closed-loop design ensures structural rigidity and hygiene compliance. ISO 600×400mm modular baskets with tilt-out assist provide efficient item access and configuration flexibility. Dual carts can operate independently or dock into the stainless-steel tabletop workstation. Medical-grade silent casters ensure stable, quiet, and maneuverable performance in clinical environments.

Product Performance:
• Integrated 304 stainless steel tabletop with internal support tubes
• High-strength anodized aluminum frame with smooth, non-porous surface
• ABS injection-molded connectors with snap-fit modular joints
• ISO 600×400mm standard ventilated basket system
• Basket height: 100mm
• Adjustable dividers for dynamic compartment configuration
• Dual label frames: 58×90mm (external), 42×65mm (internal)
• 2° tilt-out drawers with roller-assist glide system
• Stainless steel safety railings on three sides of each cart top
• φ100mm medical-grade silent casters with:
 – Dual brake system
 – Dual directional control
 – 360° swivel and straight-line self-correction
• Nested design: small and large carts can be stored under workstation
• Fully customizable in size, configuration, and basket arrangement

Dimensions:
• Workstation: 2185×668×1040mm
• Large cart: 984×628×900mm
• Small cart: 710×456×900mm
• Basket: ISO 600×400mm × H100mm
• Label frames: 58×90mm (external), 42×65mm (internal)

Application Scenarios:
Ideal for hospital operating rooms, dispensing areas, and mobile storage points. Enables streamlined supply access during high-turnover procedures and modular transport between zones. Flexible docking design adapts to dynamic clinical workflows while maintaining infection control and ergonomic use.
