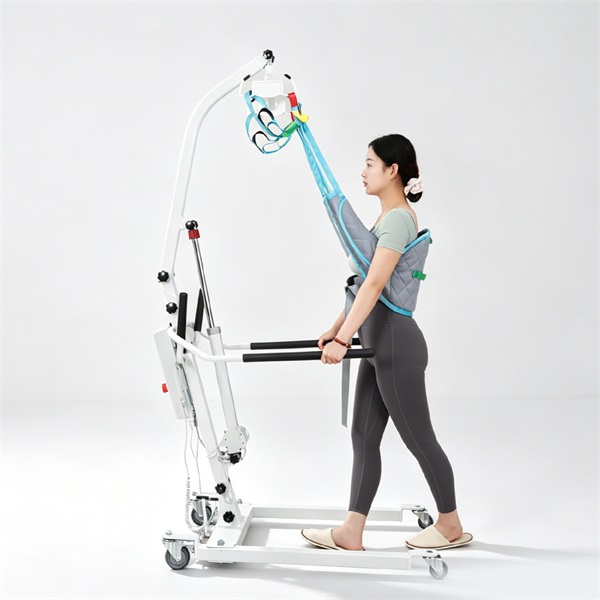

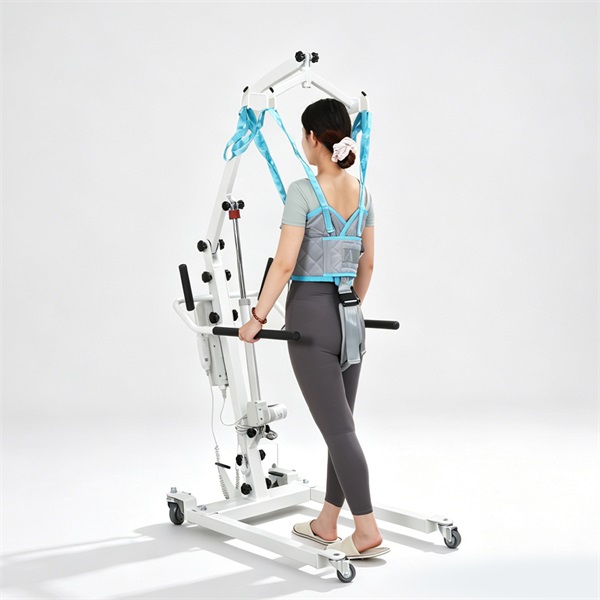

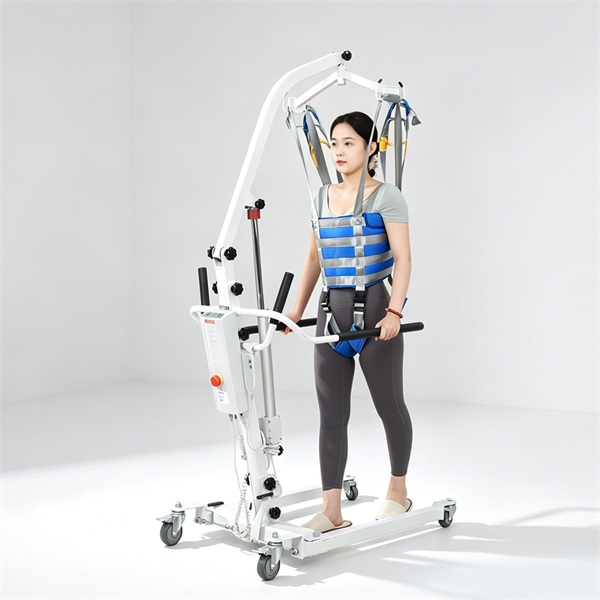

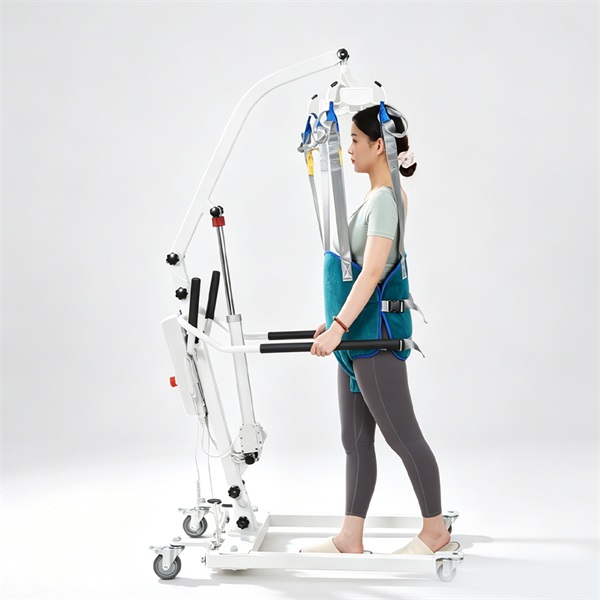

FGBP03W Electric Walking Patient Lift

Core Advantages:

High-strength alloy carbon steel frame, 360° foldable rotary armrest, dual-control operation, ISO-compliant safety standards, and dual-mode transfer/walking functionality. We welcome partnerships with global agents for customized patient transfer and rehabilitation solutions.

Product Performance:

• High-strength alloy carbon steel frame with anti-rust and corrosion-resistant finish

• Medical-grade, easy-to-clean surface suitable for frequent disinfection

• Dual-control operation for flexible, multi-angle handling

• Dual-mode functionality: patient transfer and walking rehabilitation support

• 360° rotatable and foldable armrest (length: 650mm), adjustable to patient height

• 230KG high load-bearing capacity, meeting clinical safety standards

• 8000N high-thrust motor with smooth 3.8mm/s lifting speed

• Ultra-quiet operation (<65dB(A)) for use in quiet environments

• Adjustable base width (560-850mm) for narrow space access

• Dual power options: lead-acid or lithium battery available

• Universal 100-240V/50-60Hz input voltage compatibility

• 3-meter power cord length for extended range of movement

• Stainless steel casters for smooth, scratch-free mobility

• Symmetrical anti-tipping chassis design for enhanced stability during transfer and walking

Dimensions:

• Base length: 1050mm

• Adjustable base width: 560-850mm

• Base height: 110mm

• Lifting range: 350-1950mm

• Sling off-ground range: 0-1000mm

• Handrail length: 650mm

• Motor thrust: 8000N

• Power cord length: 3 meters

• Safe load-bearing capacity: 230KG

• Net weight: 40kg

• Gross weight: 47kg

• Package dimensions: 1200×625×355mm

Application Scenarios:

Optimized for hospitals, nursing homes, and home care. It supports patient transfer between beds, wheelchairs and bathrooms, plus walking rehabilitation training for post-op and daily care needs.
