FGBP05 Electric Patient Lift

Core Advantages:

High-strength alloy carbon steel frame, dual power battery options, ISO-compliant safety design, powerful silent motor system, and dual-controller operation. We welcome partnerships with global agents for flexible, reliable patient transfer solutions.

Product Performance:

• High-strength alloy carbon steel frame with anti-rust and corrosion-resistant finish

• Medical-grade, easy-to-clean surface suitable for frequent disinfection

• Dual power options: lead-acid or lithium battery available

• Powerful silent motor with dual controllers for flexible operation

• 230KG high load-bearing capacity, meeting clinical safety standards

• 8000N high-thrust motor with smooth 3.8mm/s lifting speed

• Ultra-quiet operation (<65dB(A)) for use in quiet environments

• Adjustable base width (600-850mm) for narrow space access

• Low-profile base (110mm height) allows patient lifting directly from the floor

• Universal 100-240V/50-60Hz input voltage compatibility

• 3-meter power cord length for extended range of movement

• Stainless steel casters for smooth, scratch-free mobility

• Symmetrical anti-tipping chassis design for enhanced stability

Dimensions:

• Base length: 1050mm

• Adjustable base width: 600-850mm

• Base height: 110mm

• Lifting range: 350-1800mm

• Sling off-ground range: 0-1000mm

• Motor thrust: 8000N

• Power cord length: 3 meters

• Safe load-bearing capacity: 230KG

• Net weight: 40kg

• Gross weight: 47kg

• Package dimensions: 1100×670×380mm

Application Scenarios:

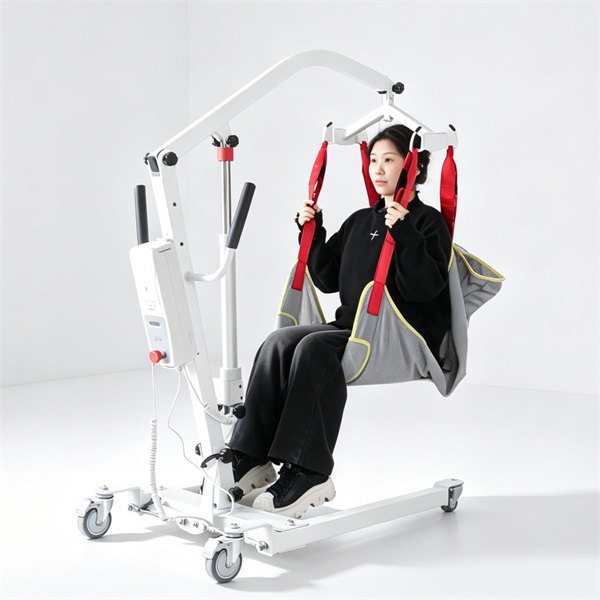

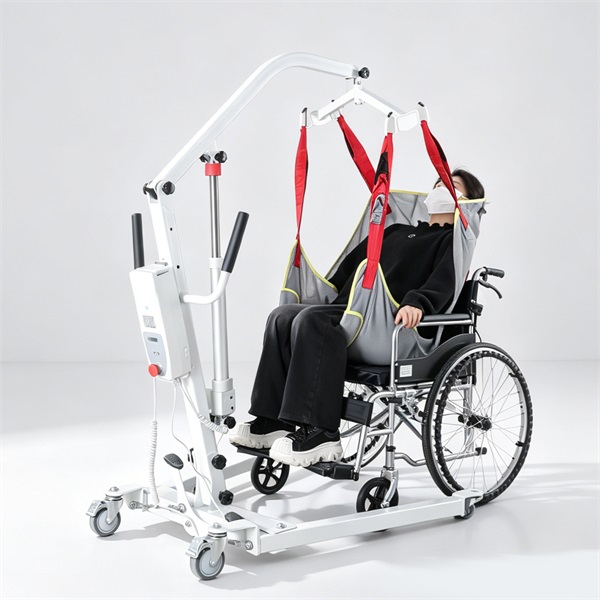

Optimized for hospitals, nursing homes, and home care. It safely transfers patients between beds, wheelchairs, and bathrooms, with floor-level lifting for immobile users, supporting bathing, toileting, and post-op transfers.
