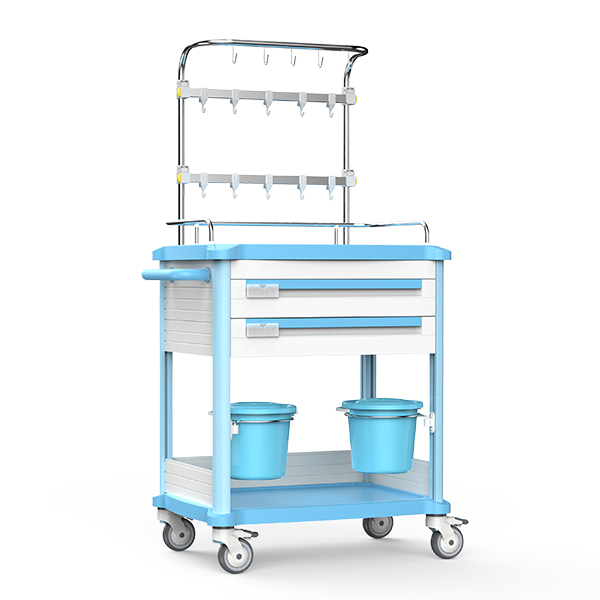

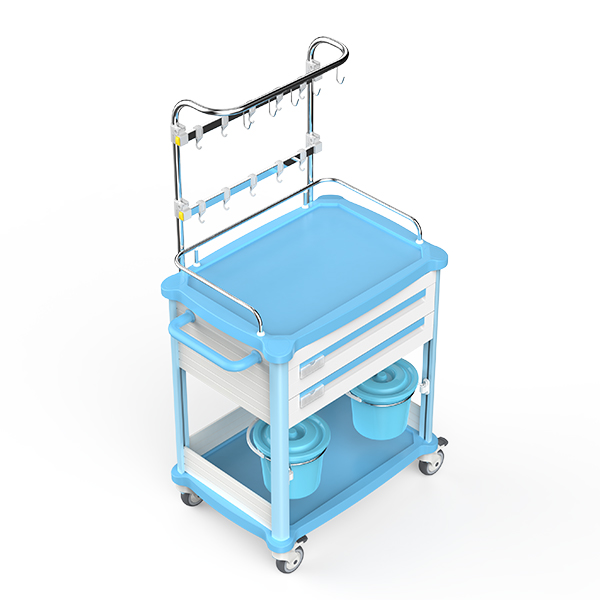

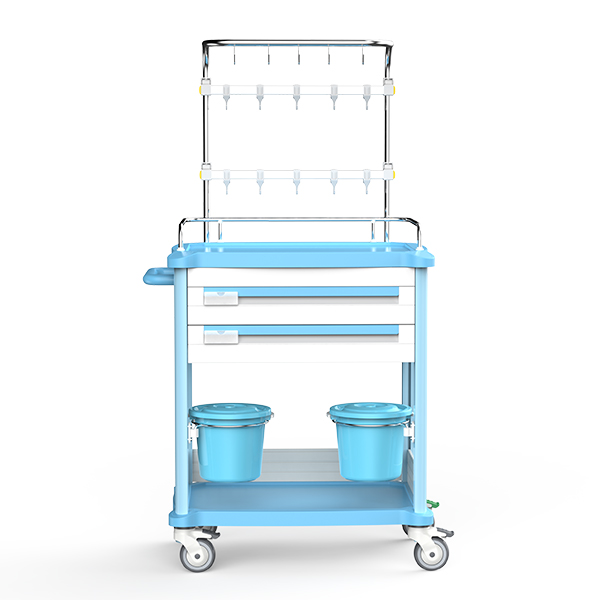

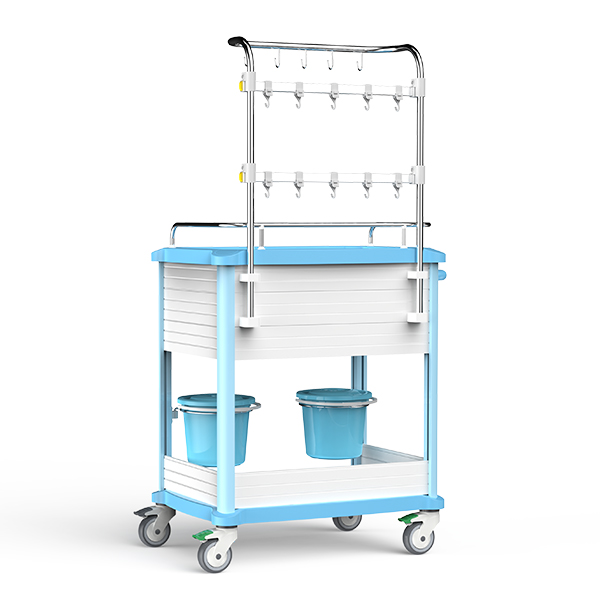

FG-E-06 Infusion Trolley

Core Advantages

FG-E-06 is a lightweight infusion cart with dual drawers and a patented height-adjustable IV stand. It offers stable movement, quiet operation, and high-capacity hanging points, ideal for multi-patient infusion care.

Key Specifications

• Worktop: Defend antibacterial ABS (GB/T 31402-2015); 5mm concave top with 1.5mm frosted soft glass

• Guardrails: Upper stainless steel & lower aluminum alloy; full three-side protection

• Body: ABS + aluminum alloy cage structure; sturdy, light and easy to clean

• Drawers: 2 shallow drawers with adjustable dividers and removable trays

• Slides: Heavy-duty 3-section silent soft-close slides; 15kg+ load capacity

• IV rack: Patented height-adjustable system with 15 hanging points

• Standard parts: Ergonomic push handle, two 300° rotating trash cans

• Casters: 100mm medical silent casters (5-year warranty); dual brake & dual fixed

• Optional: Locks, basket, auxiliary table, trash cans

• Packaging: Air cushion + thick carton

Dimensions

• Overall size: 783×504×860mm

• Worktop size: 695×485mm

• Compartment height: 380mm

• Total height: 1420mm

Application Scenarios

Suitable for infusion halls, general wards, and pediatrics for multi-bed infusion management.

Selling Point

Patented 15-hook IV stand, dual-drawer storage, antibacterial surface, quiet mobility. We look forward to establishing partnerships with distributors worldwide.
