FG-E-07 Medical IV Cart

Core Advantages

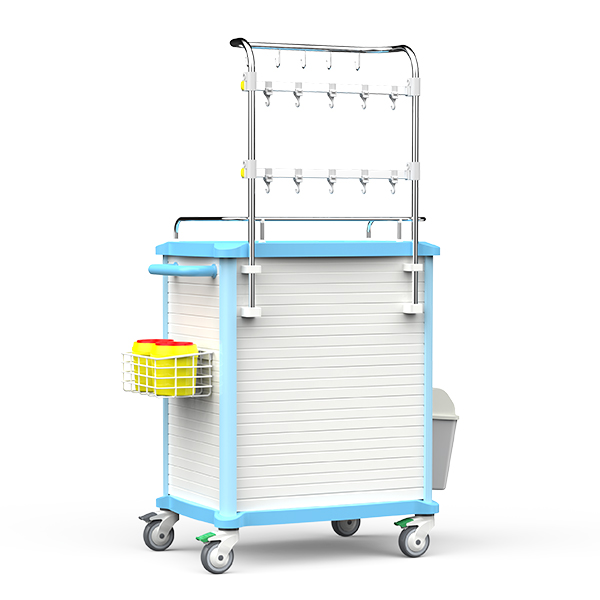

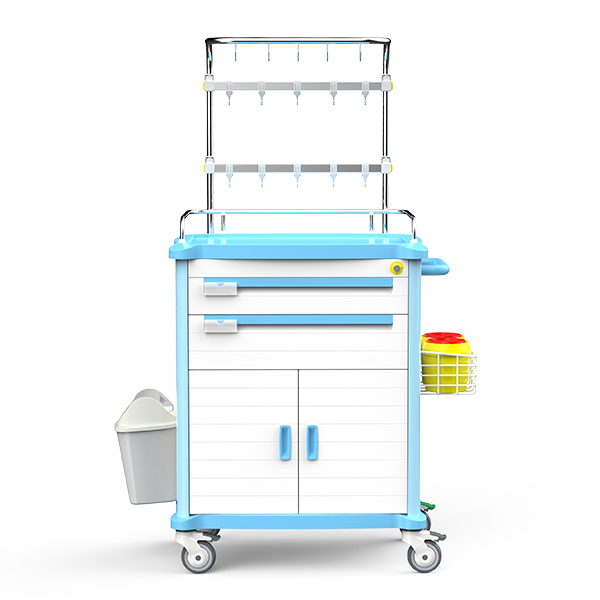

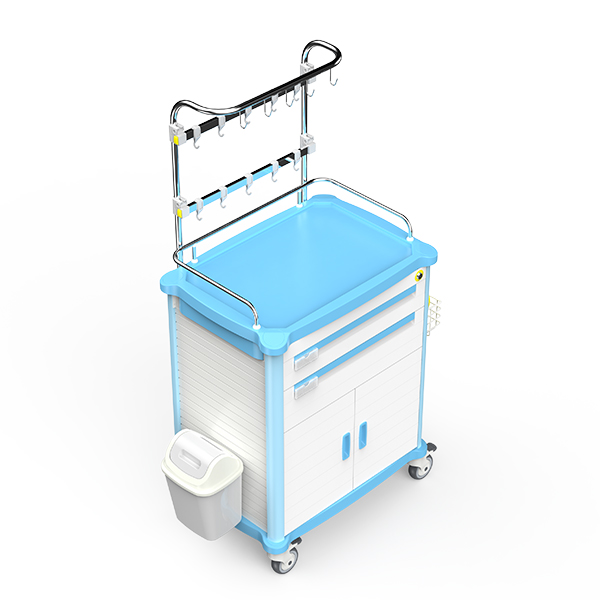

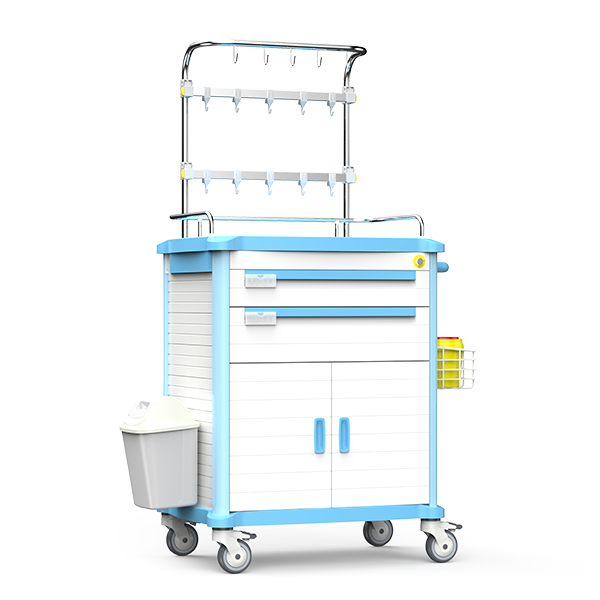

FG-E-07 is a multi-functional infusion cart with dual drawers, a front double-door cabinet, and a patented height-adjustable IV system. It combines medicine storage, equipment housing, and infusion support in one stable, quiet unit.

Key Specifications

• Worktop: Defend antibacterial ABS (GB/T 31402-2015); 5mm concave top with 1.5mm frosted soft glass

• Guardrail: Φ12.7mm stainless steel (70mm) for three-sided protection

• Body: ABS + aluminum alloy cage structure; sturdy, lightweight and easy to clean

• Drawers: 1 shallow + 1 middle drawer with adjustable dividers and removable trays

• Slides: Heavy-duty 3-section silent soft-close slides; 15kg+ load capacity

• Lock: One-key central lock for two drawers

• Double-door cabinet: 400mm height with damping hinges for small devices

• IV rack: Patented height-adjustable system with 15 hanging points

• Standard parts: Pull-out auxiliary table, detachable basket, trash can, push handle

• Casters: 100mm medical silent casters (5-year warranty); dual brake & dual fixed

• Optional: Electronic lock, fingerprint lock, file box, pedal trash can

• Packaging: Air cushion + wooden case

Dimensions

• Overall size: 783×504×960mm

• Worktop size: 695×485mm

• Double-door height: 400mm

• Total height: 1520mm

Application Scenarios

Suitable for wards, pediatrics, and chemotherapy rooms for diversified infusion and emergency care.

Selling Point

15-hook IV system, double-door equipment storage, antibacterial hygiene, quiet stable mobility. We look forward to establishing partnerships with distributors worldwide.
